3 Point Headstock

Product Range / 3 Point Headstock

EJ Engineering has designed the 3 point headstock to maximise the movement efficiency and safety of your implements around your yard.

The 3 point headstock is most commonly used for maintenance/repairs and moving loading of the implements.

Securely connecting onto implements within a matter of minutes with either the latchable bottom link hooks or the fixed top hook with bottom flat pads.

Any telehandler, excavator or front loader headstock brackets can be fitted to the 3 Point Headstock.

(Picture to the right shows bottom linkage hooks)

Top Standard Features

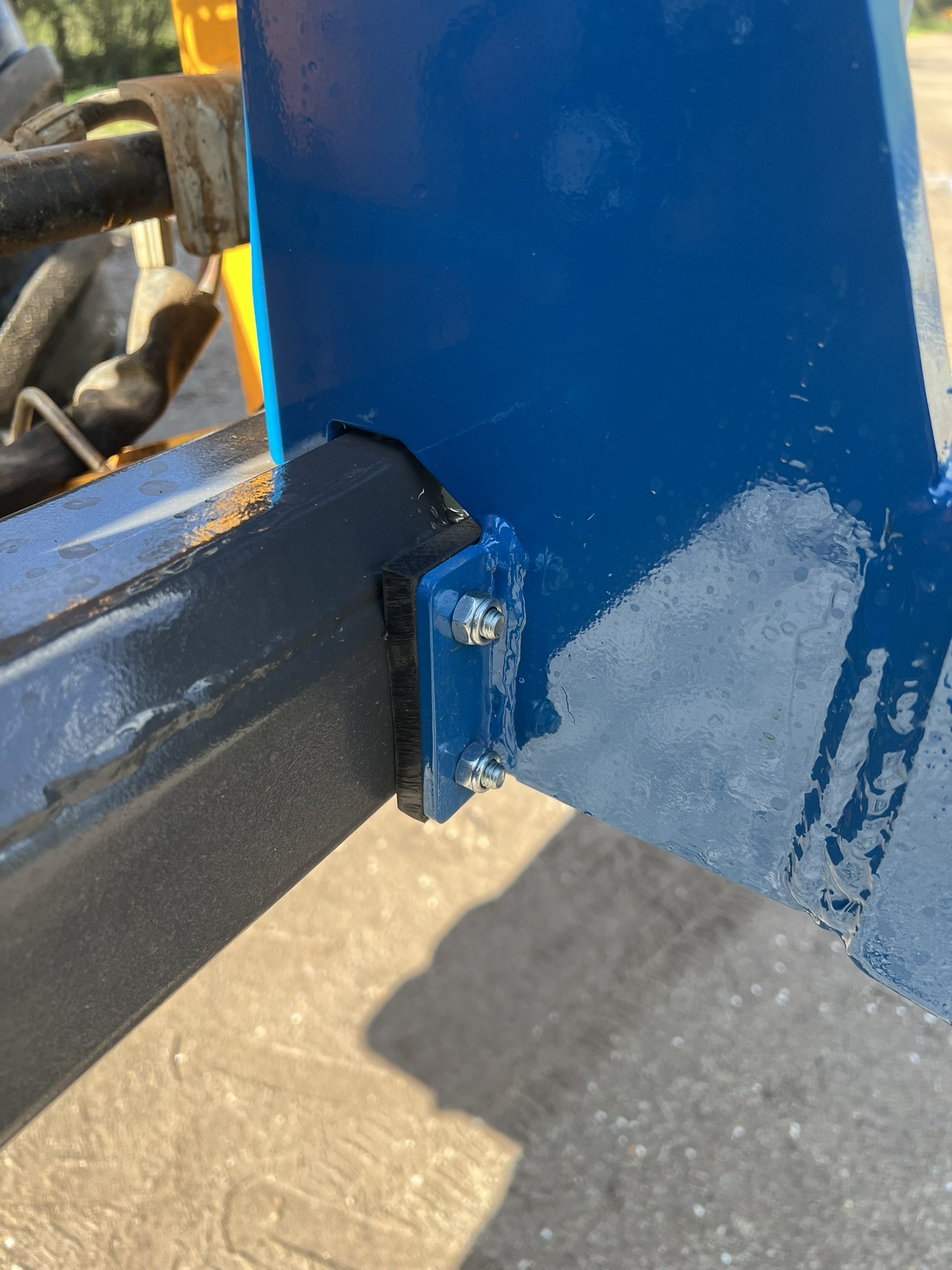

Sliding Wear Pads

EJ Engineering has designed the bottom link arms to be adjustable to suit most categories of 3 point linkages. This method is done by a single bar at the top while the bottom of the arm slides along the bottom box section via a self-lubricating plastic wear pad. This means it reduces the forces through the bar that dramatically reduces the chance of the bar bending. This increases the longevity of the 3 point headstock.

The single bar and plastic wear pad method allows the operator to slide the arm with minimal effort. A easy to use locking handle at the top is used to top the link arms from sliding.

Bottom and Top Securing Method

The 3 Point Headstock - Linkage as standard has bottom CAT 3 quick release hooks that has a tested safe working load of 5000kg.

The top linkage comes as standard with a heavy duty slotted link rather than a traditional screw linkage. If you prefer a screw top linkage, this can be supplied. The slotted top link is the prefered method due to the ease of attaching the slotted link. All you need to do is crowd the headstock forward, attach the top linkage with the 150mm adjustable travel, then crowd the headstock back again to take the weight on the pin through the slot. Compared to a traditional top linkage, where you have to screw the top linkage in and out to suit the hole centres.

Optional Extras

Fold Down Removeable Drawbar

Not only would you want to move your implements around the yard but move your trailers around as well. The drawbar swoops down to allow good visability when hitching onto the trailers without the need of another operator to guide you in. Due to the design of the compact linkage arms and the drawbar, you can turn a maximum of 90 degrees to the trailer drawbar which enables you to get into the tightest of places.

Drawbars available:

  • Clevis Hitch (Can be supplied with a 50mm Ball onto of pin if required for car trailers)

  • 80mm Ball Hitch

  • Hook

Other features:

  • Comes with CAT 2 & CAT 3 stickers to enable you to get the arms in the correct position everytime.

  • Extra storage place for your Category balls if you want to store an extra set.

  • CAT 3 bottom link arms - Can be supplied with CAT 2 bottom link arms.

  • Standard colours are Gun Metal Grey and Blue - Other colours are available on request.

Standard models:

  • 3 Point Headstock - Linkage, This comes with the quick release bottom hooks and top linkage.

  • 3 Point Headstock - Fixed Hook, This comes with a fixed top hook and bottom pads.

Fixed Top hook and Plastic Pads

If you want the security of the standard bottom link hooks, you can add the fixed hook and bottom plastic pads as an attachable extra.

The fixed book will take the weight of the implement and the bottom plastic pads are there supporting the implement. The pads has a divider plate in the centre, if the implement was to slide, the centre plate is there to stop the implement sliding off the pads.

All components fit onto the headstock so you will never loose them.
